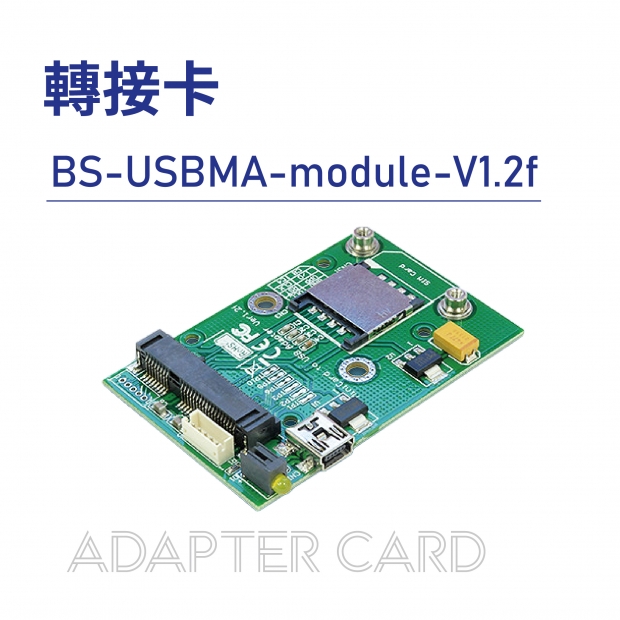

BS-USBMA-module-V1.2f Adapter card

BS-USBMA-module-V1.2f Adapter card

USB wireless communication Mini Card Adapter card
USBMA Series Wireless USB Mini Card Adapter
undefined
/
  • Adapter card 轉接卡-BS-USBMA-module-V1.2f.jpg
DETAIL



Specification
  • PCI Express Mini Card to USB adapter.
  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • Universal Serial Bus Specification Revision 2.0
  • Full/ Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA, UMTS, EDGE.
  • Access LED.(USBMA)
  • Operating Temperature Range : - 40℃ to +85℃
  • Operating Humidity Range : 5% to 95% RH
  • Compliant with Waterproof IP-66 (USBMA-WP)



Function

  • USB mini type-B connection to desktop or notebook PC.
  • Supports two primary system bus interface: USB.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC.
  • Support SIM card connector.
  • Support U.FL/IPX to RP-SMA pigtail Wifi RF cable adapter.
